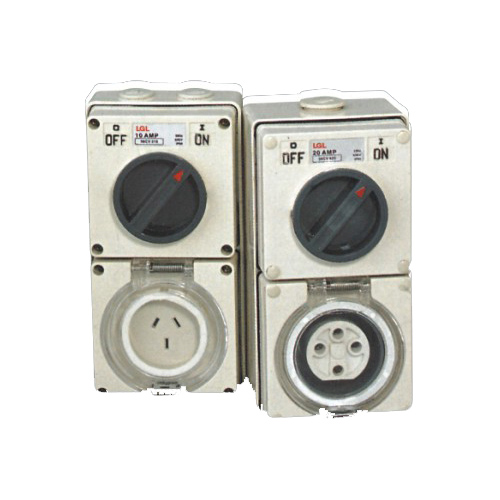

| 500V Combination Switched Sockets |
| All 500Vswitched sockets rated 32A and above have an internal interlocking feature {plugs connot be withdrawn or inserted when the switch is in the on position.this feature is also avaiable for 16A and 20A upon rquest.optional keylocking off facility quote for NEON indicator option add"N" after catalogue number. |
|
catalogue number |
56cv
416 |
56cv
416k |
56cv
420 |
56cv
432 |
56cv
435 |
56cv
440 |
56cv
450 |
56cv
516 |
56cv
520 |
56cv
532 |
56cv
535 |
56cv
540 |
56cv
550 |
56cv
616 |
56cv
716 |
56cv
720 |
|
rated operational voltage ue(-50HZ) |
volts |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
rated themal current endclosed |
amps |
16 |
20 |
32 |
35 |
35 |
40 |
50 |
16 |
20 |
32 |
35 |
40 |
50 |
16 |
16 |
20 |
|
switch description |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
3pole |
|
utilisation category |
amps |
16AX
M120 |
20AX
M180 |
32AX
M180 |
32AX
M250 |
32AX
M250 |
50AX
M250 |
50AX
M120 |
16AX
M150 |
20AX
M160 |
32AX
M180 |
32AX
M250 |
50AX
M250 |
50AX
M120 |
16AX
M120 |
16AX
M120 |
20AX
M150 |
|
AS3133 250V
AC23A 240V |
KW
AMPS |
7.5
15 |
11.0
21 |
15.0
28 |
15.0
28 |
15.0
28 |
18.5
35 |
18.5
35 |
7.5
15 |
11.0
21 |
15.0
28 |
15.0
28 |
18.5
35 |
18.5
35 |
7.5
15 |
7.5
15 |
11.0
21 |
|
cable cross section solid or stranded mm2 |
min
max |
1
16 |
1
16 |
1
16 |
1
16 |
1
16 |
1
16 |
6
35 |
6
35 |
1
16 |
1
16 |
1
16 |
6
35 |
6
35 |
1
16 |
1
16 |
1
16 |
|
socket number of socket pins(including earth) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
5 |
5 |
5 |
5 |
6 |
7 |
7 |
|
socket configuration |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IP rating |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 | |
